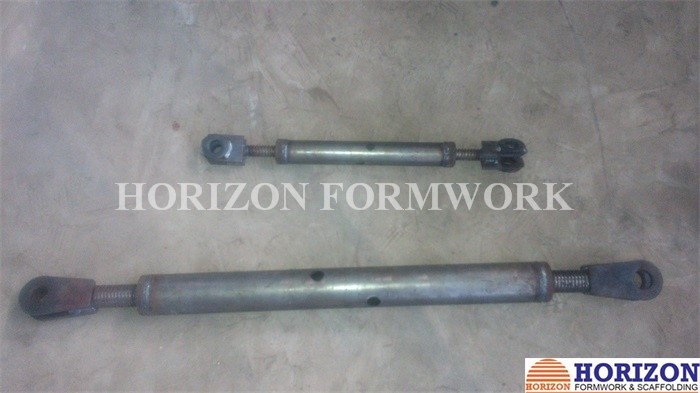

Scaffolding Push-Pull Prop for Supporting Wall Formwork Systems
The push-pull-props was manufactured by qualified strong materials and process on ensuring a long service life, low maintenance costs and fast handling.
Various finishing are available, like painting, powder coating, zinc plate, and HDG. The available lengths of the push-pull props are from 1.3m to 10m.
Quick adjustment
Thanks to the telescoping design, working length adjustment can be carried out within seconds . The required adjustment needs only a few turns of the push-pull prop.
Very simple operation on site
All the push-pull props can be handled on site for assembly.
Easy supporting assembly
For easy assembly to the form work panels and ground, the Push-Pull Prop base plate adapter and the connector head are used. In this way, the push-pull props can be safely and quickly installed and dismantled from the ground.
Wall Formwork Components:
| Components | Diagram / photo | Specification / description |
| Wall formwork panel |  | For all vertical formworks |
| H20 Timber beam |  | Water proof treated
Height: 200mm
Width: 80mm
Length: as per table size |
| Steel waling |  | Painted, powder coated
[12 steel channel
|
| Flange clamp |   | Galvanized
To connect steel waling and H20 beams |
| Push-pull prop |  | Painted
help formwork panel erection |
| Waling connector 80 |  | Painted
Used for formwork panels alignment |
| Corner connector 60x60 |  | Painted
Used for forming inner corner formwork with wedge pins |
| Top scaffold bracket |  | Painted,
severs as safety working platform
|

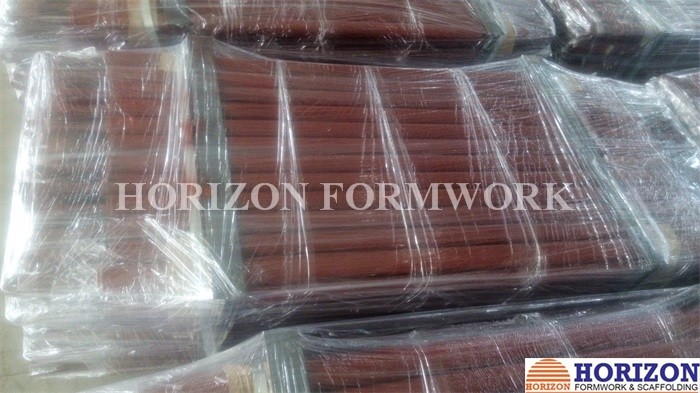

Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.
What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.
Why us:
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.
We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
HORIZON FORMWORK, your reliable formwork partner!
